7-Speed Gearing
CT20 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.
USB Charging
There is a USB 1AH charging port under the CT20 display, which is convenient for you to charge your mobile phone with low battery when riding outdoors, ensuring your safety.
Oil Brake
Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.
Flowing Headlights
Equipped with water-type headlights, the irradiation range is wider and farther.
Soft Seat
With soft and thick leather seat, make your ride more comfortable.
Rear Shelf
The whole system is equipped with a rear shelf as standard, which can carry people for travel, with a maximum load of 150KG(safety 120KG).
Upgraded Throttle Handle
In 2024, the new CT20 has upgraded the handlebar from Grip Twist Throttle to Thumb Throttle. A quick release function has been added to make it easier to replace accessories.
Go Far Away Happily
GT20 provides 1200Wh (25AH) high-quality 18650 lithium battery with a range of up to 87 miles (140KM) and a max speed of 28MPH (45KM/H). It is legal and complies with Class 2 and Class 3 modes. Please feel free to ride.

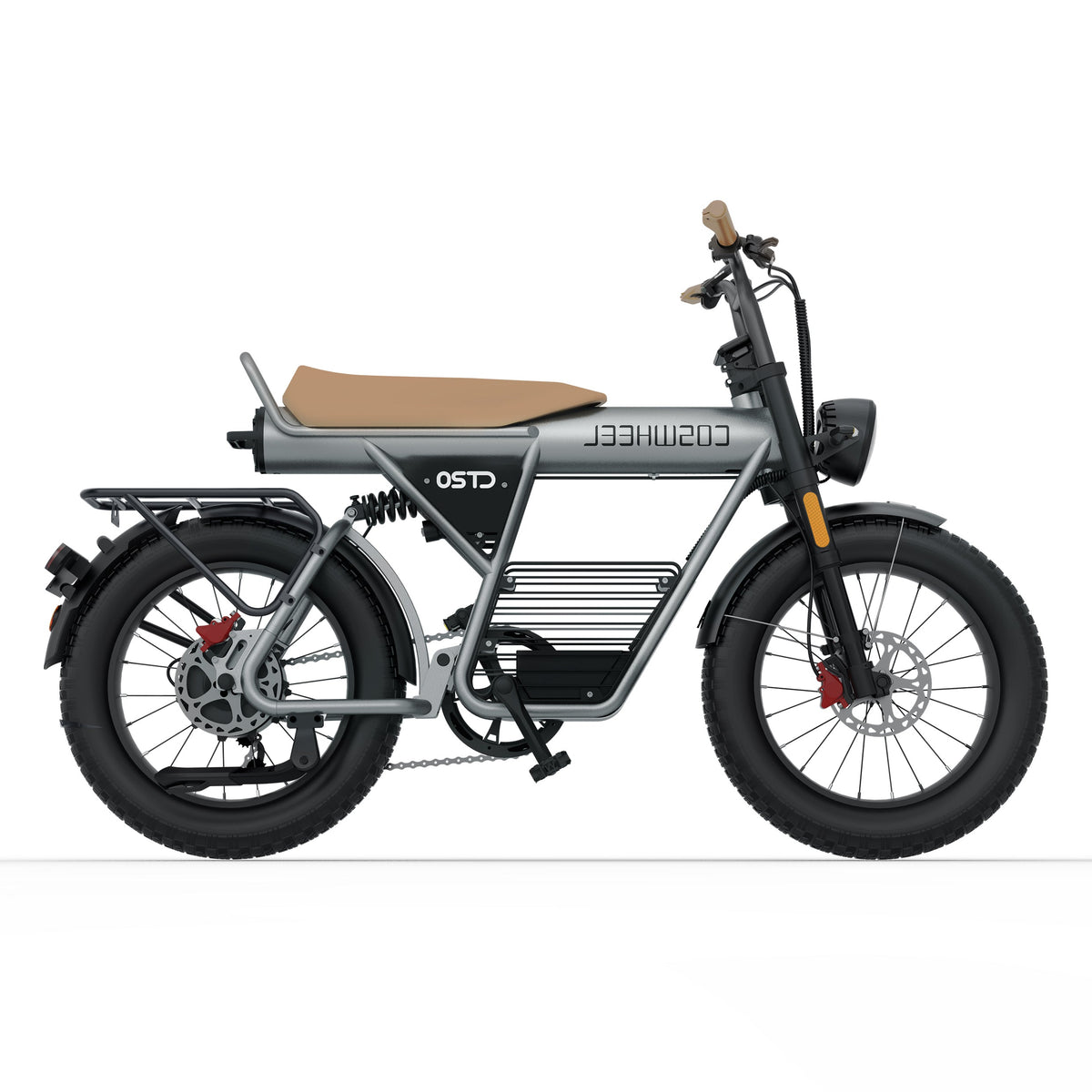

Family Commuter Ebike
The CT20 is 180cm (70.9") long, with an extra-long body and 5" * 20" all-terrain tires. At the same time, it is equipped with a large storage rack under the frame, which is very suitable for a family's commuting and camping.
Different Experience
The GT20 is equipped with a high-speed brushless motor with a peak value of 1500W (rated at 1000W), with an instantaneous maximum current of 28AH and a torque of 80N.m, allowing you to easily shuttle between cities and country roads.
Specification:
-
Top Speed: Class 2/3, 28 Mph (45Km/h)
-
Range: 50+miles (80km) in Class-2 throttle-only mode (pure electricity); 87miles (140km) in Class-1 PAS (pedal assist)
-
Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m
-
Battery: 48V 25Ah Battery (Lithium 18650 Cells)
-
Energy: 1200Wh
-
Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
-
Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
-
Tires: Off-road Tire 20" * 5.0" IA-2149 with AV+Lining
-
Throttle: Grip Twist Throttle (Old) / Thumb Throttle (New)
-
Charger: 48V3A Charger
-
Charging Time: 3.5-8.0 Hours
-
Display: Easy Read LCD Display
-
Controller: 48V 28A
-
Front Light: Classic Angel Eye Headlight, 120 LUX
-
Rear Light: LED
-
Pedal Assist: 5 Levels
-
Sensors: Speed Sensor
-
Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
-
Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
-
Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
-
Rear Derailleur: Shimano 7-Speed
-
Chain: 7-speed Anti-rust, 1/2" * 3/32"
-
Handlebars: Sand Black 31.8*660
-
Suitable Height: 5'1" - 6'5"
-
Seat Height: 33.4" (85cm)
-
Bike Height: 45.3" (115cm)
-
Wheelbase: 45.3" (115cm)
-
Handlebar Width: 26.4" (67cm)
-
Bike Weight: ≥88lbs (with Battery) (≥40kg)
-
Maximum Load: 330lbs (150kg)
-
Safe Load: 265lbs (120kg)
-
Overall Size: 70.9" * 26.4" *45.3" (180*67*115cm)
-
Package Size: 59.4" * 14.2" * 35.4" (151*36*90cm)
