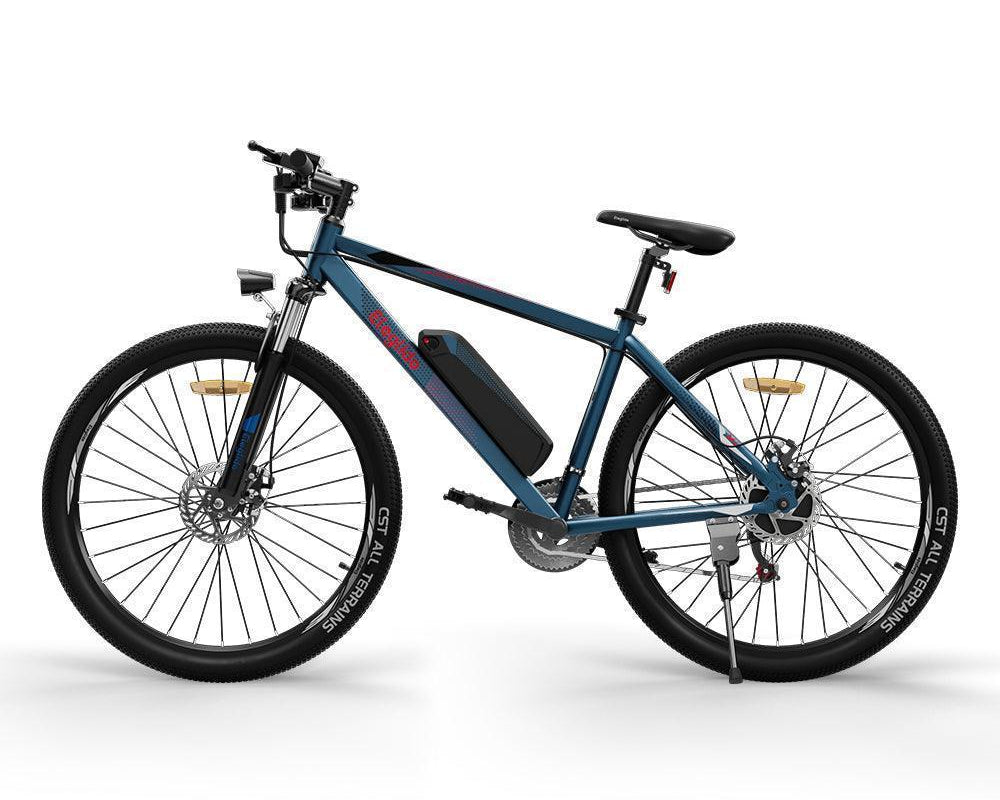

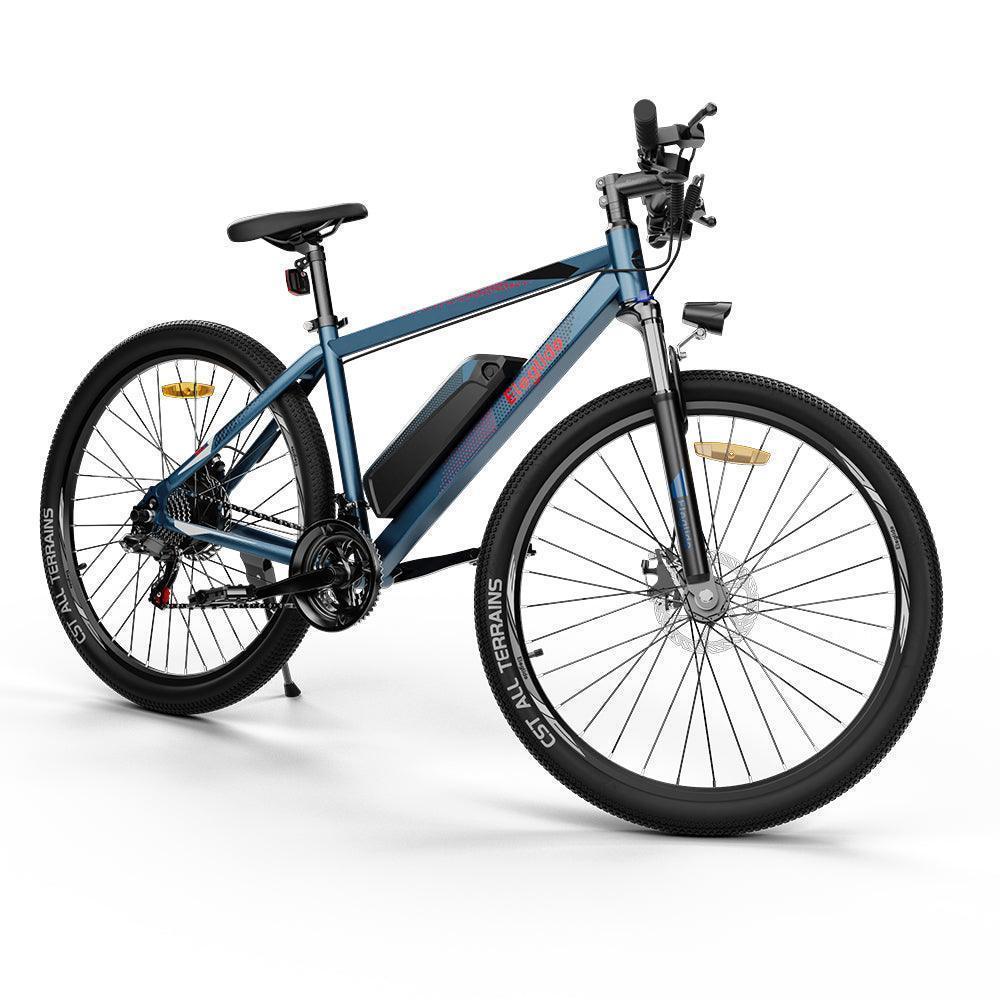

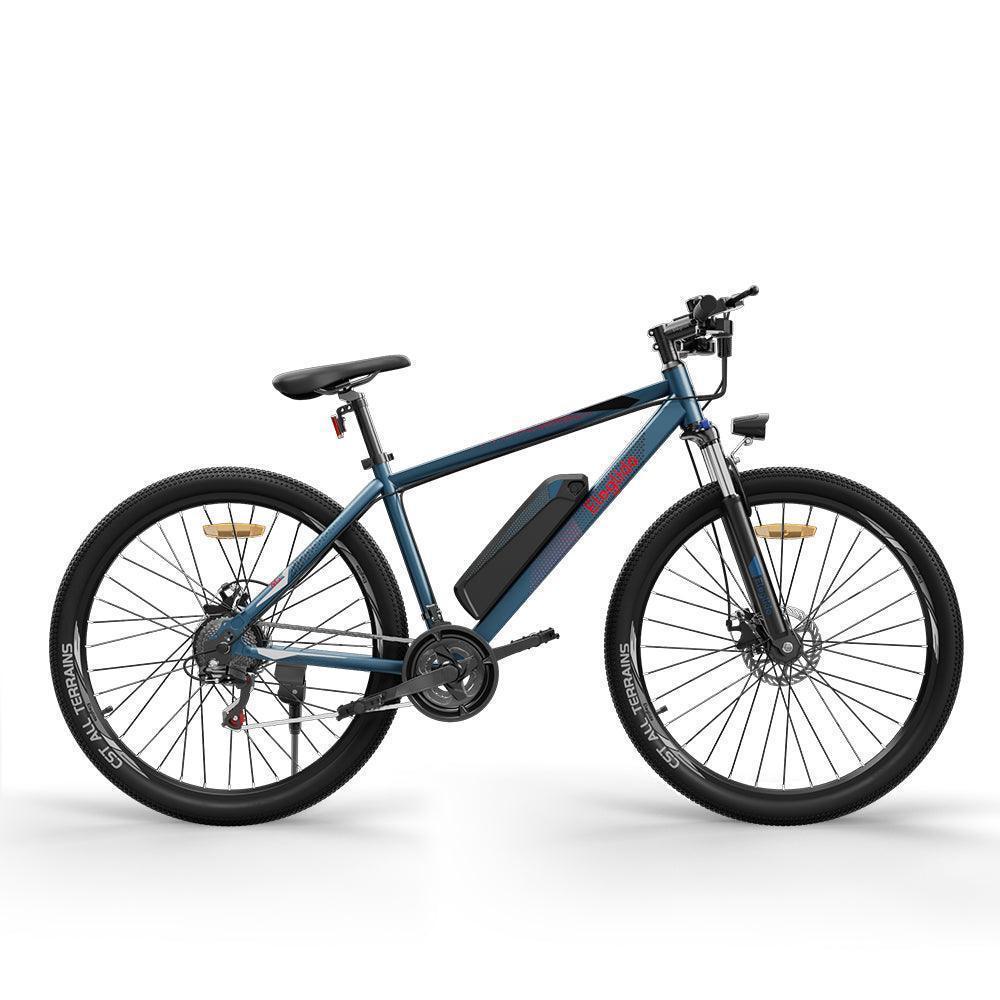

Highlights

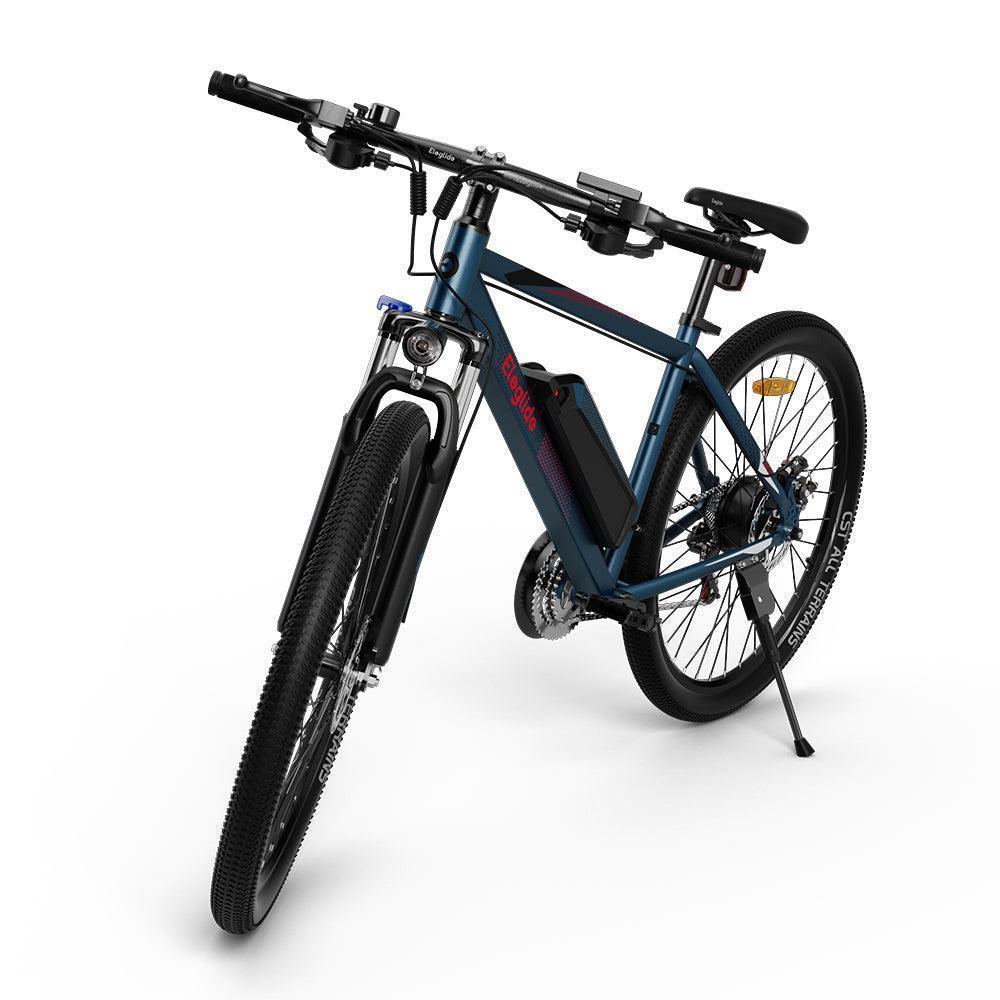

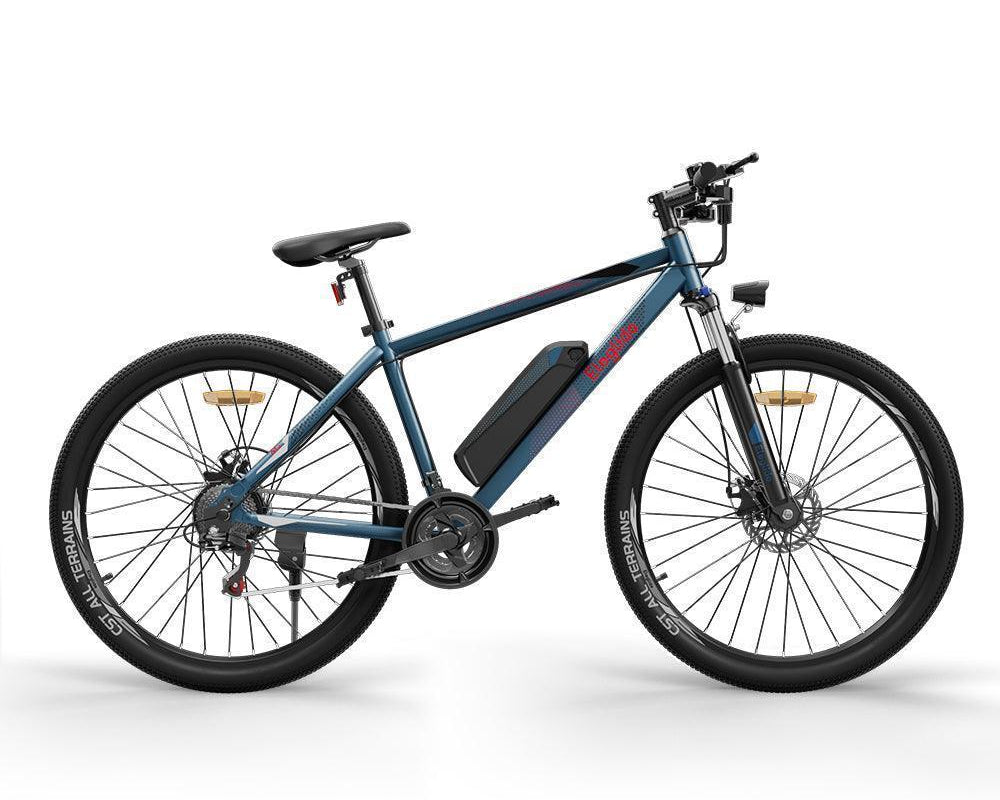

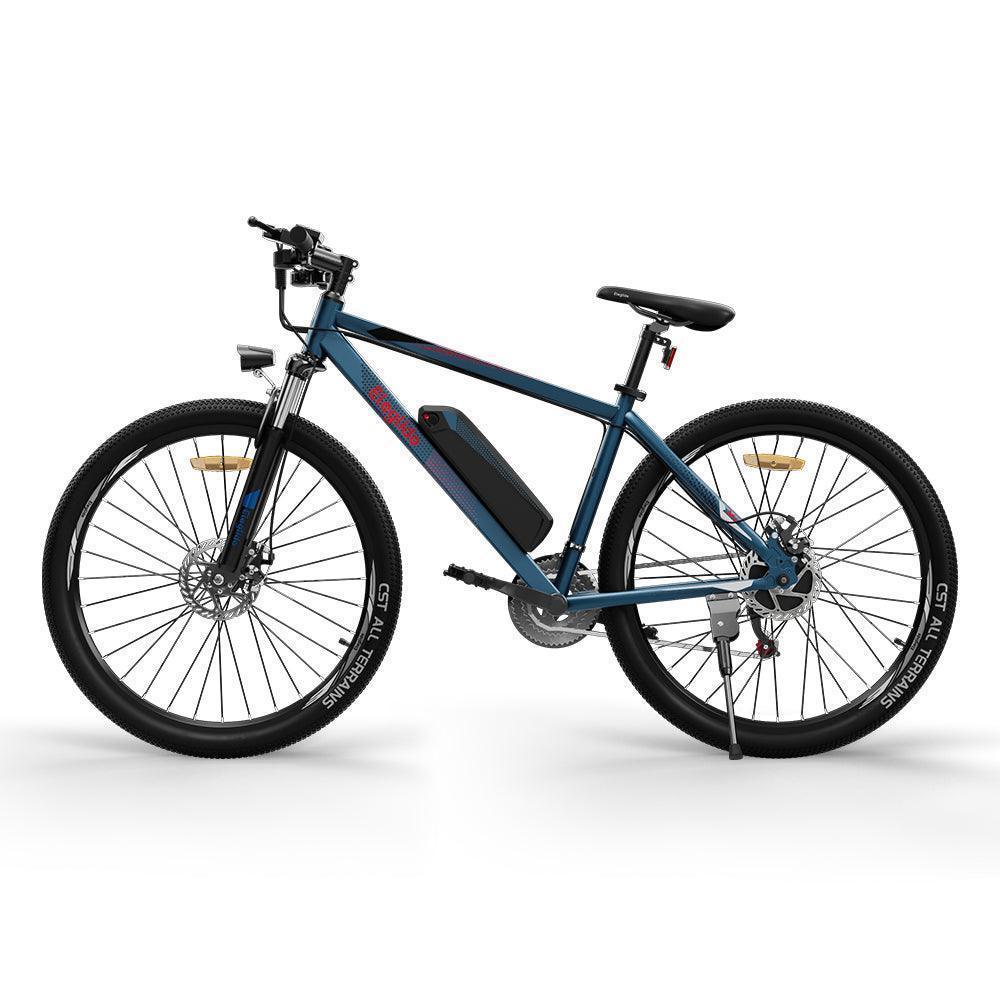

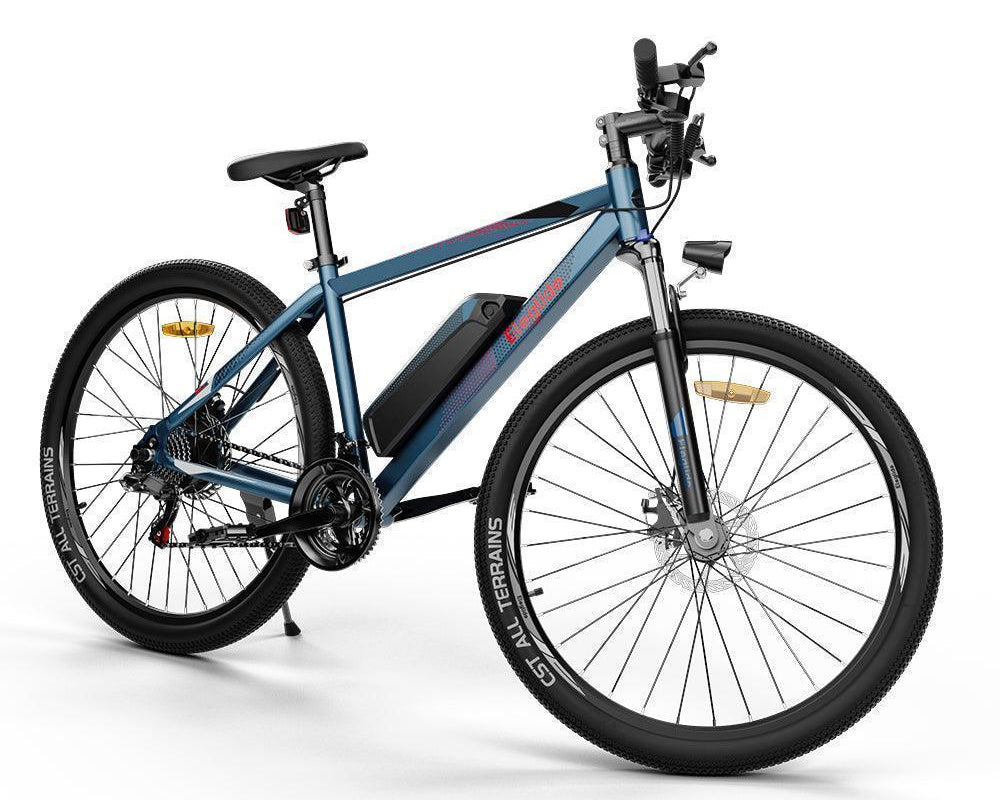

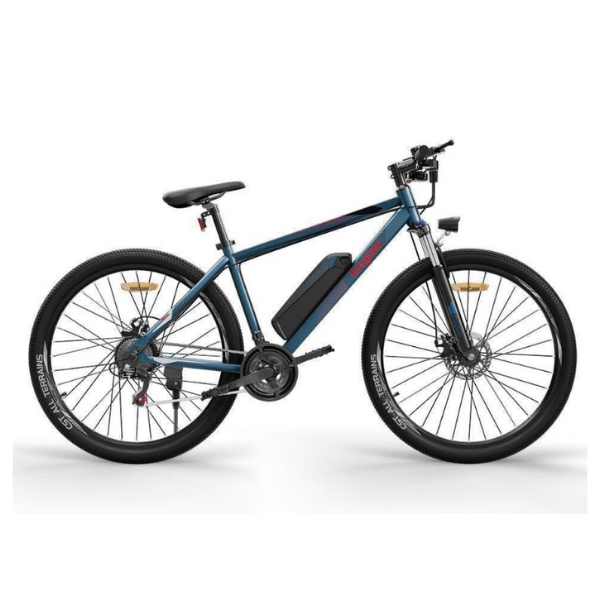

The new M1 and M1 Plus are both improved with larger wheels of 27.5 inches, longer handlebars of 26.8 inches and hydraulic suspension with lockout.

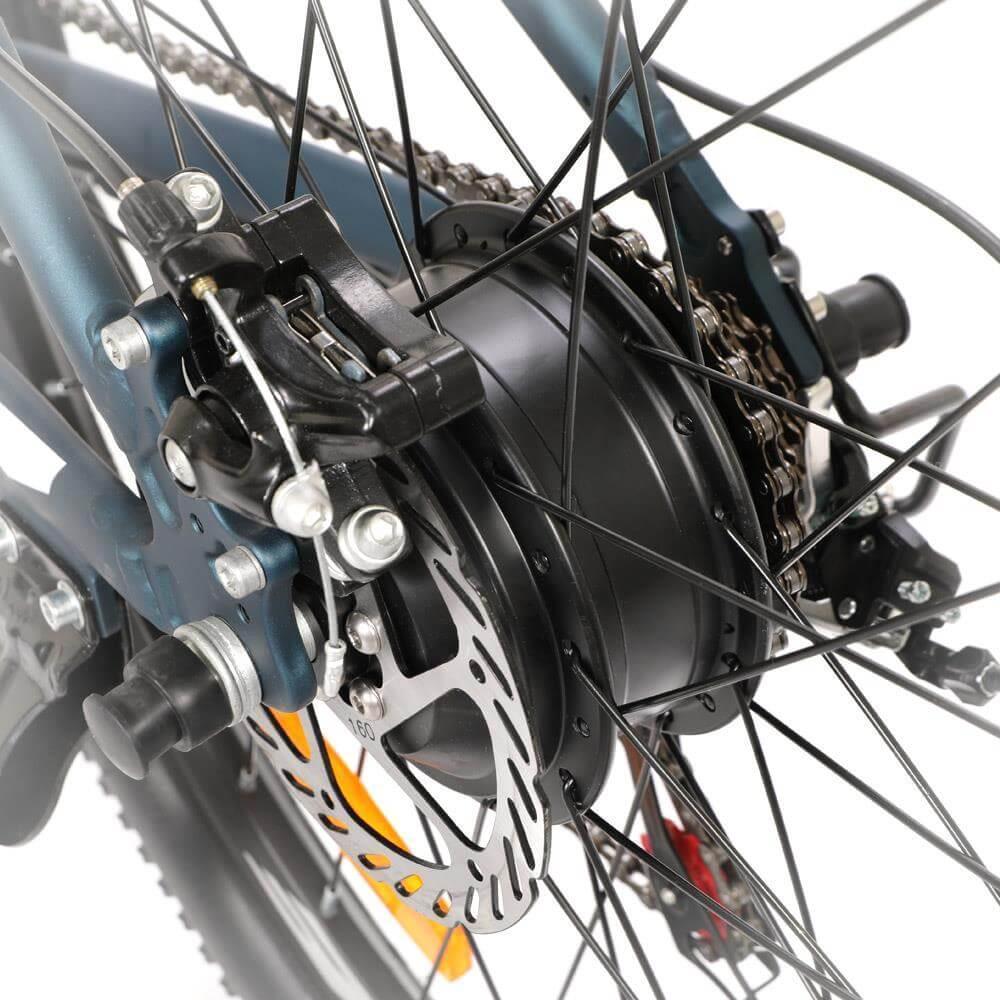

Powerful Motor
250W powerful motor provides unprecedented performance, high-speed brushless motors and 36V intelligent brushless controller, it can easily assist you to travel at 25km/h.
3 Riding Modes and 5 power levels
By pure electric, by Assistant mode and by yourself, you can choose the pure electric mode to enjoy a relaxing time and also can use it for exercising. It's easy to change power levels by pressing the "MODE" key according to your needs.

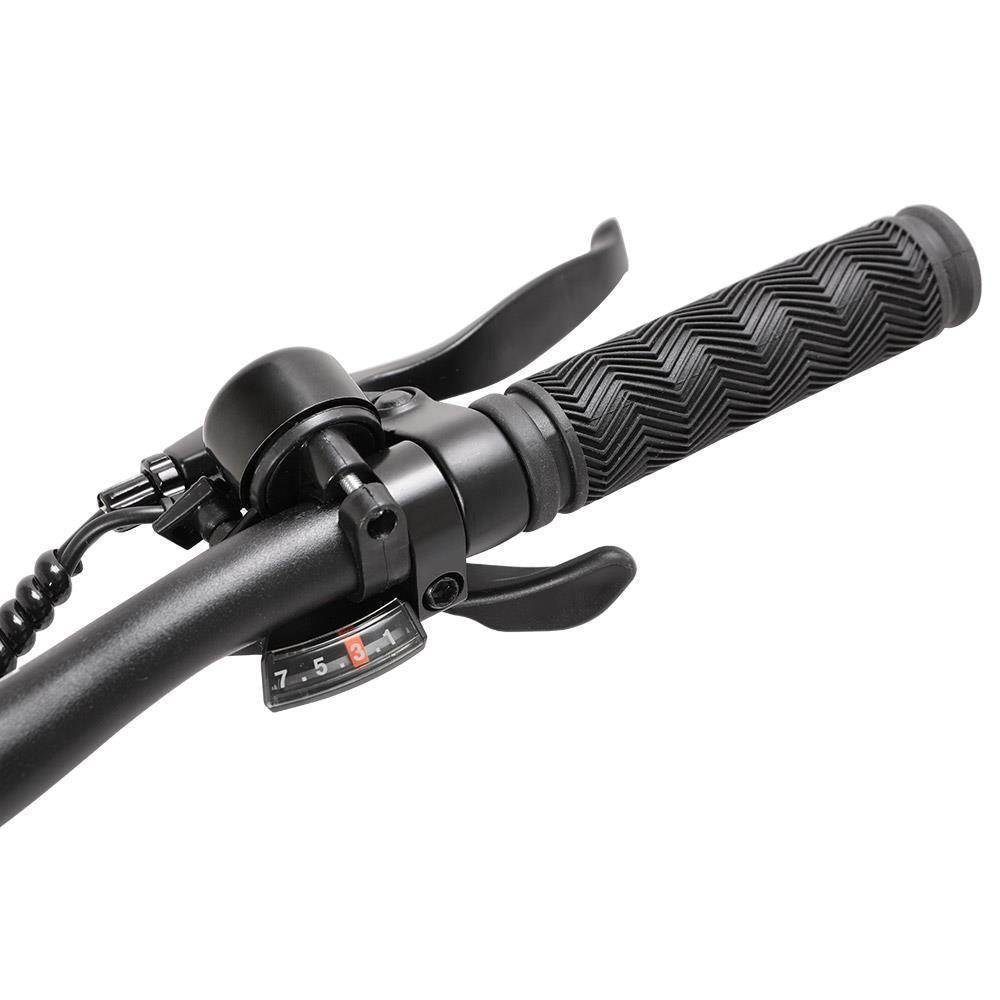

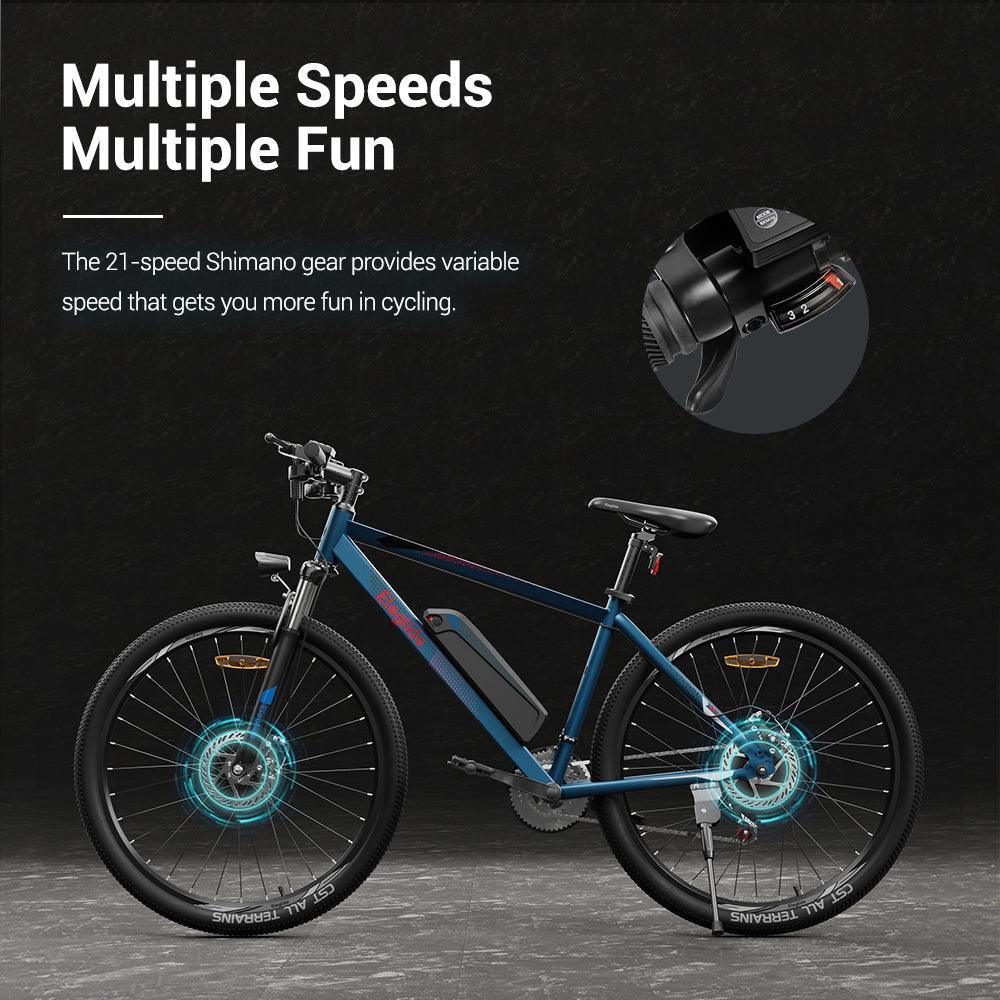

Perfect Brakes and 21 Speeds gears
The electric bicycle with front and rear disc brakes and Shimano 21 speeds, you can choose any speed to enjoy faster riding time or experience relaxing holiday according to your needs. Perfect brakes fully protect your safety.
Better Battery
This electric mountain bike with 36V 7.5Ah lithium battery, you can ride up to max speed 25km/h in pure electric mode. Adopting removable battery, you can charge the battery in the frame or remove it easily.
High-quality Material
The E-bike adopts excellent aluminum alloy frame, high toughness, and strong corrosion resistance feature. The front fork is made of high-strength carbon steel and packed with premium comfort shock absorption. With the lightweight and efficient design, 26-inch wheel is suited to both urban and trail environments.

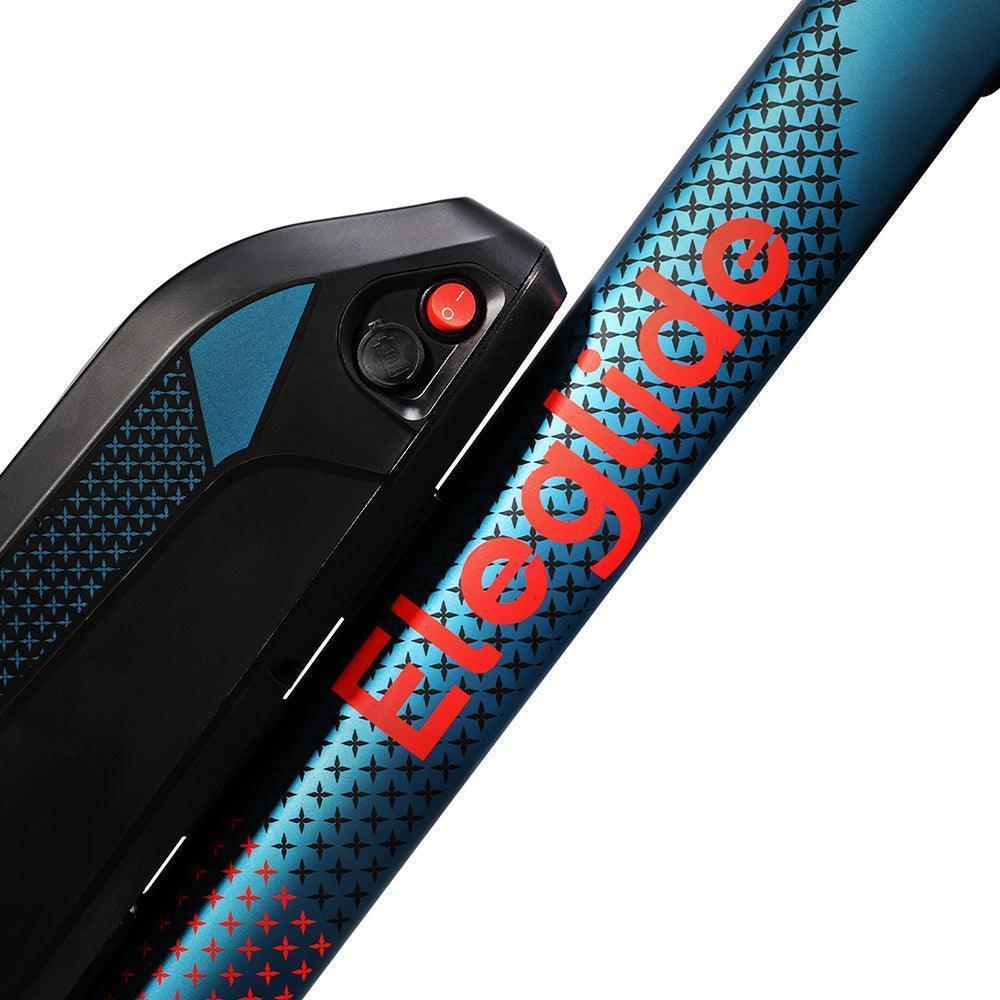

Removable Battery
18650 lithium battery gives a mileage of up to 65km on a full charge and it can be ejected easily to charge it at your convenience.

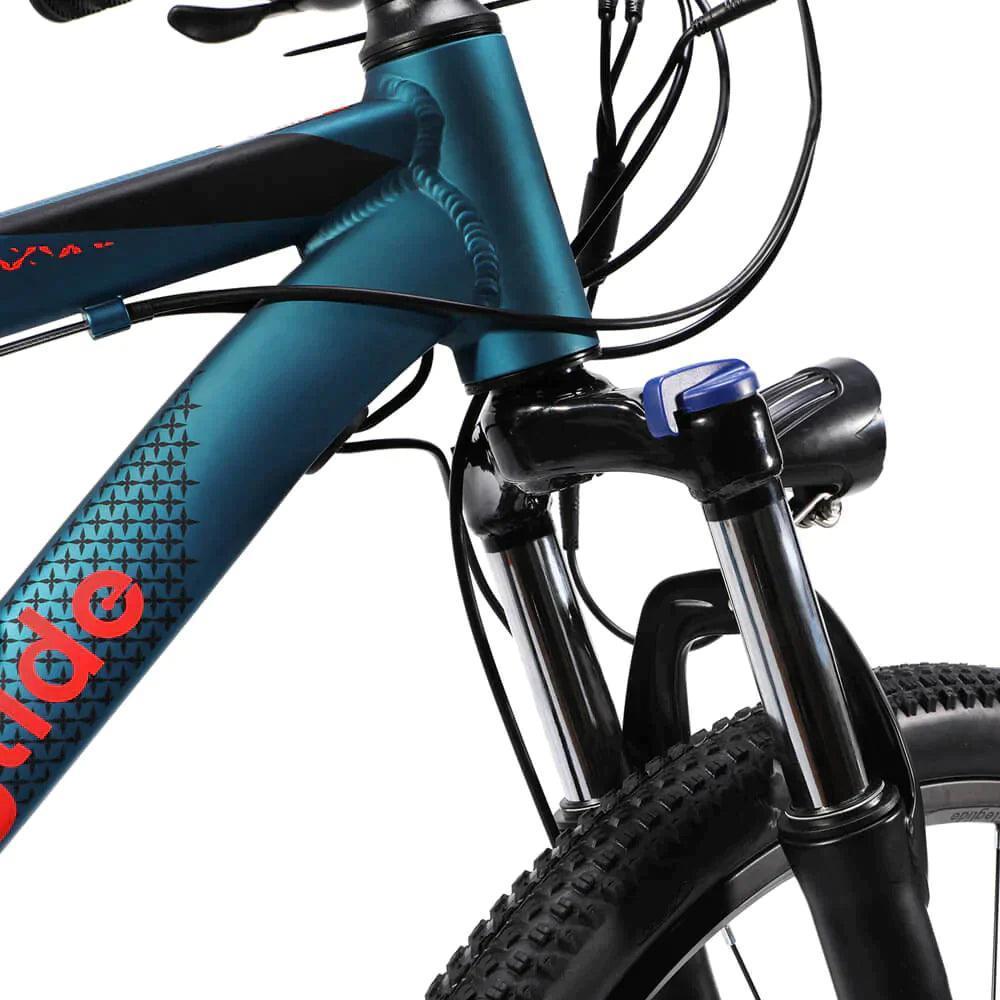

Hydraulic Suspension With Lockout
The new Eleglide M1 is upgraded with hydraulic damping design that comes with suspension lockout, leaving you a more comfortable cycling experience.
EN15194 & CE Certification
Pass CE Certification and EN15194, it is a safe product.
Eleglide Electric Bikes:
SPECIFICATION
| General |
Brand: ELEGLIDE
Type: MTB
Model: M1
Color: Dark blue
|
| Specification |
Material: Aluminum Alloy Manual Smooth Welding Frame
Size of Frame:27.5" x 17"
Suspension: Hydraulic Damping with Lockout
Motor: 250W (Rated Voltage 36V; Ins Max Power 500W; Max output torque 45N.M)
Maximum Speed:25 km/h
Battery:36V 7.5Ah
Max Range: 30 km (Electric mode); 65 km (Assistant mode)
Charger Output: 42V 2A DC
Charging Time: About 4.5 hours
Tire: CST 27.5"*1.9" Pneumatic Tyre
Derailleur: Shimano Gear 21 speeds(Front 3* Rare 7)
Maximum Load: 100 kg
Recommended Rider Heights:160-185cm (5.25ft-6.07ft)
Speed mode: Speed1 12 km/h;
Speed2 16 km/h;
Speed3 20 km/h;
Speed4 23 km/h;
Speed5 25 km/h
Waterproof rate: IPX4
Brake System: Dual Disk Brake, OD 160mm, thread root dia. M6*16mm
Brake Distance: about 5M

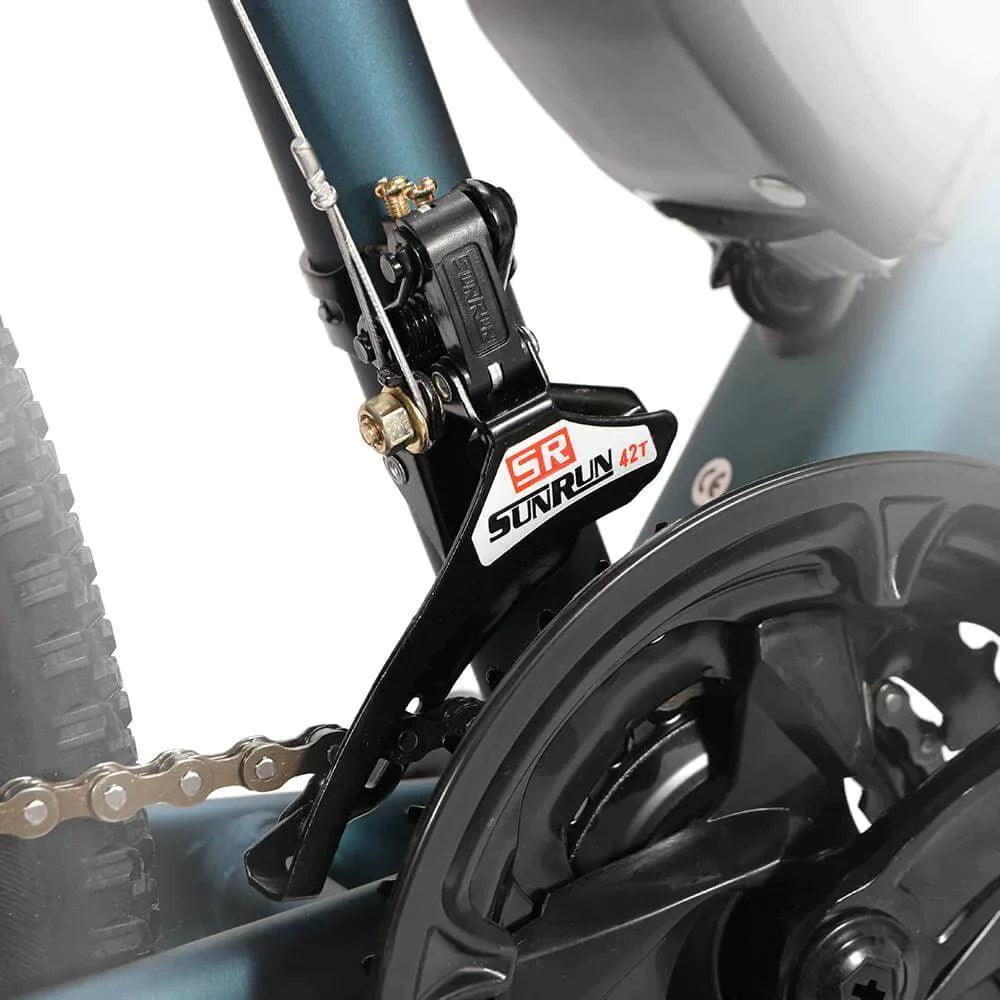

Chain plate: 42T 34T 24T
Light: LED, 65W, Beam Angle 20°, Irradiated area 0.5sq.m.
Tires: CST 26"*2.1" Pneumatic Rubber Tires, Pressure 45-65PSI Best Tire Pressure: Front 50PSI; Rear 55PSI
Display: 1.Battery Capacity
2.Speed Mode
3.Cruise Mode on/off

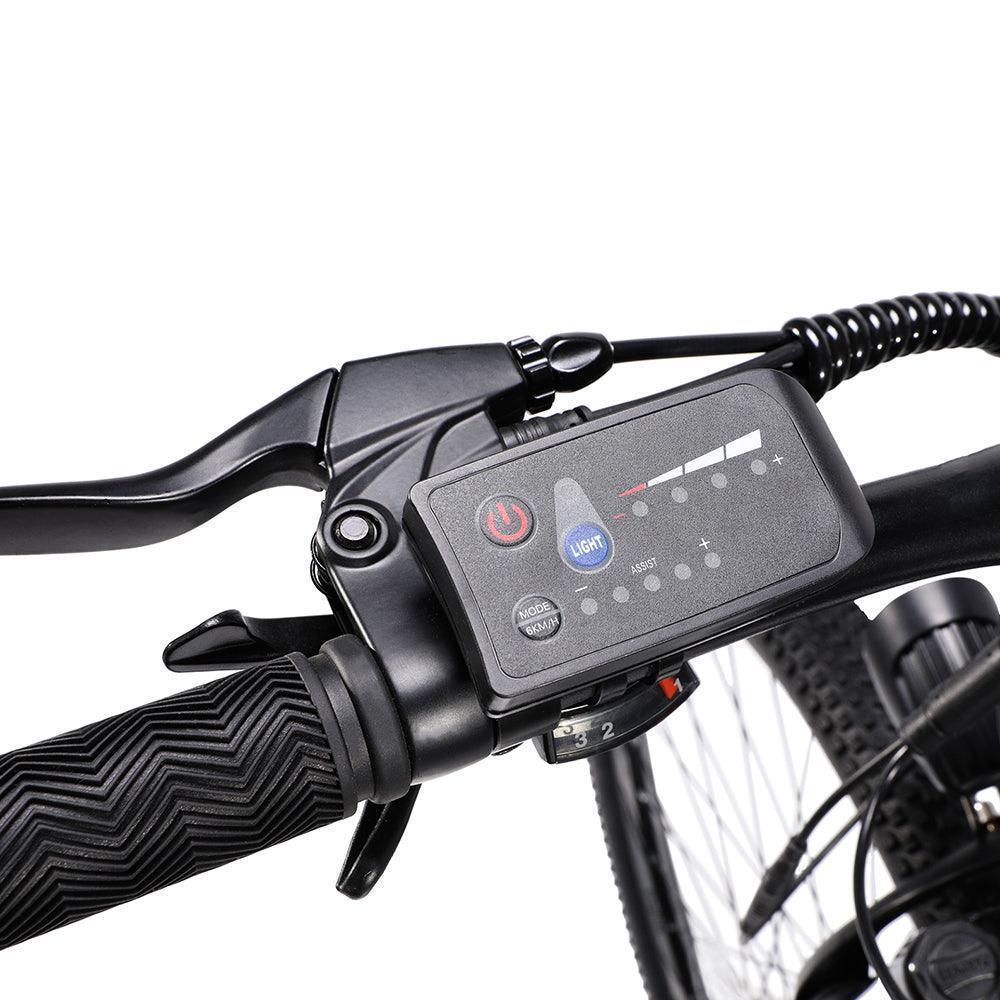

Panel Function: 1.ON/OFF
2.LED Light ON/OFF
3.Speed Mode
4.Cruise Mode on/off
5.6KM/H Push Mode
Cruise Mode: Twist and hold the accelerator meanwhile press the "MODE" button for up to 6 seconds to activate the cruise control function |

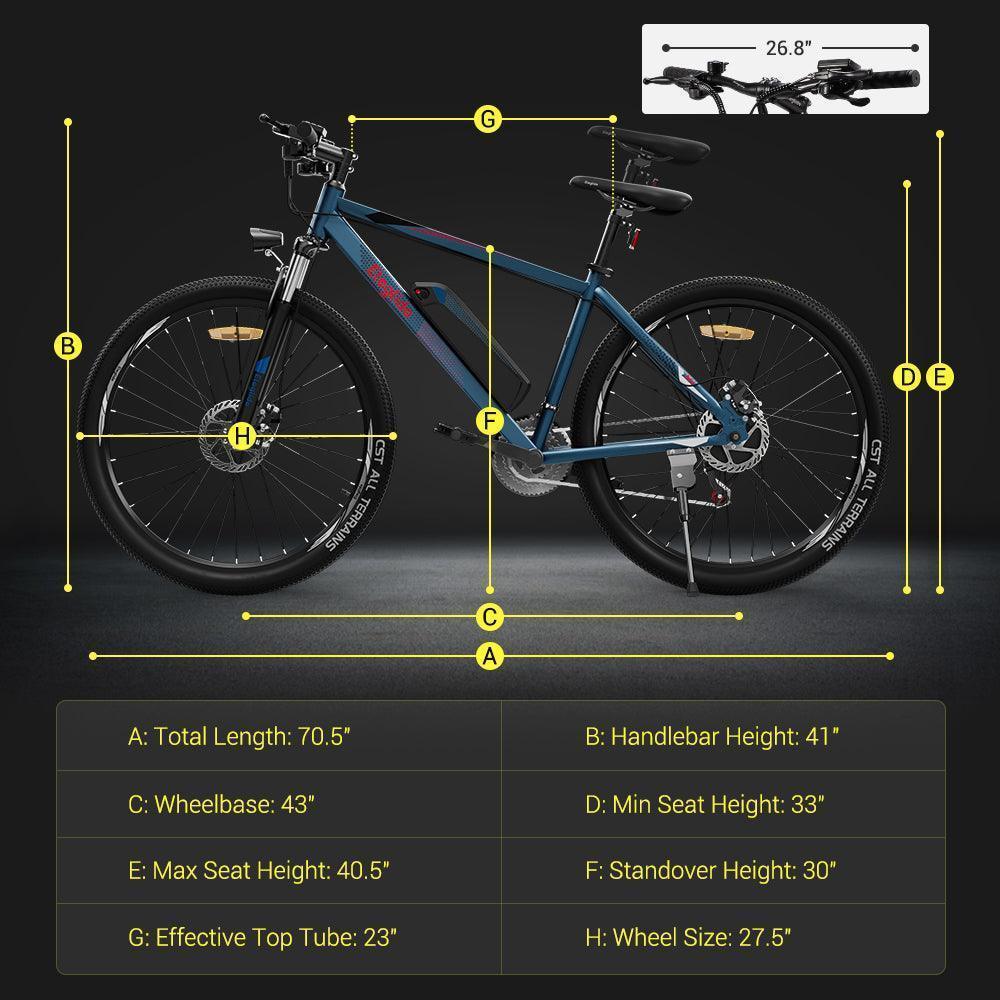

| Weight & Size |
Gross Weight: 27KG
Net Weight : 21.3KG
Unfolded Size: 1790x680x1041mm
Package Size: 1480x770x240mm
Length of Handlebar: 680mm
Height of Saddle (from the ground):33"-40.5" |

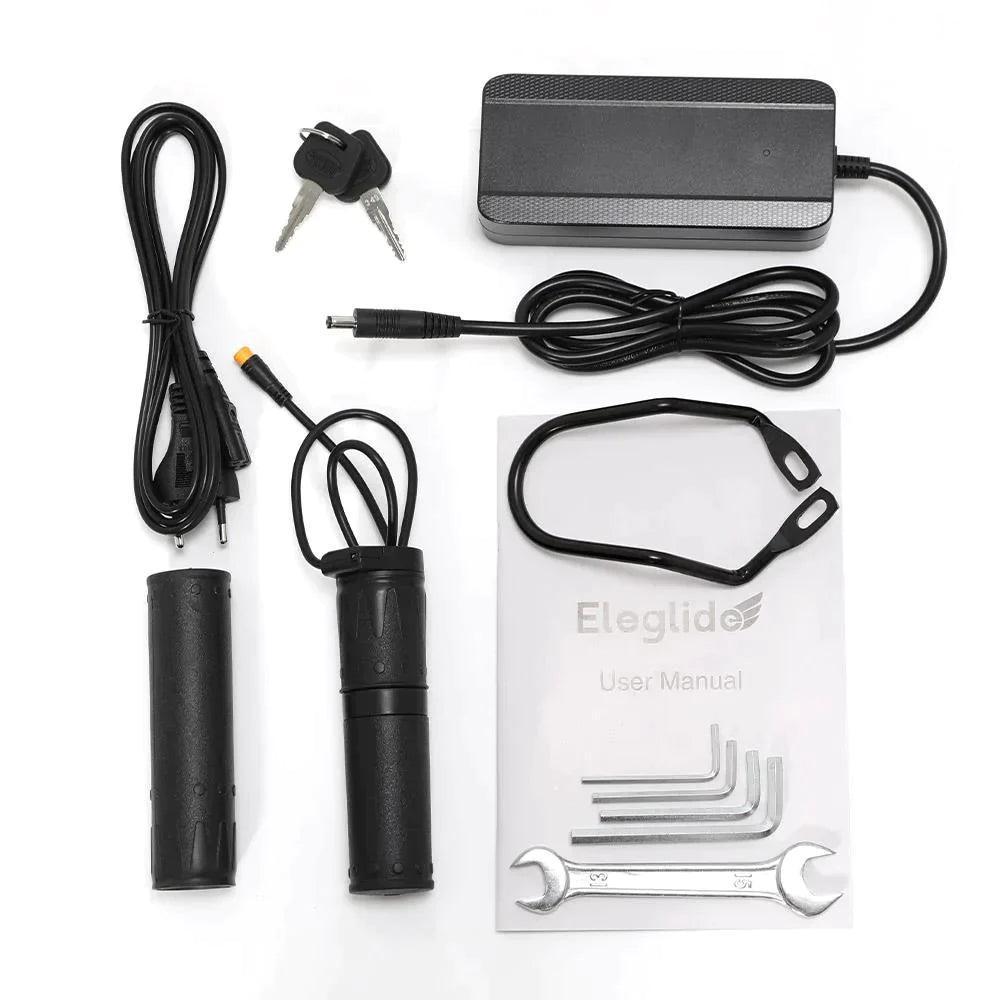

| Package Contents |
1 x M1 Bike
2 x Pedal(Right&left)
1 x Rear Shifter Protector
1 x Charger
1 x Toolkit
2 x Keys
1 x User Manual
|
